Robot not included.

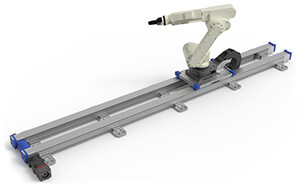

Industrial Robot Transfer Unit

Quickly and easily equip your robotic applications with an industrial robot transfer unit (RTU). Simply integrate our 7th axis with your preferred servo/auxiliary axis motor and drive using the Thomson RediMount? mounting adapter kit, and use your robotic controller to take advantage of this enhanced productivity tool.

Includes: Dual linear units, precision gearhead, motor mounting adapter kit, carriage mounting plate for robot, end-of-stroke limit switches and cable management.

Start a chat with an expert from Thomson

See the 7th Axis in action and discuss your application!

產(chǎn)品介紹

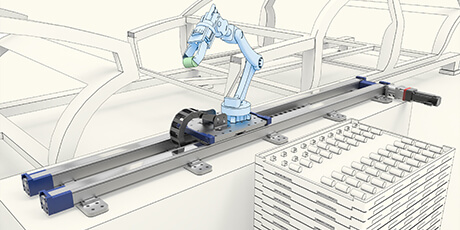

With the Thomson Industrial RTU, your robot-driven applications will soar in productivity thanks to an extended operating range up to 10 meters, 24/7 operation and more consistent quality of work.

Feature Highlights:

Dual linear unit architecture for precise linear motion and maximum stiffness
Precision gearhead and belt drive for high repeatability (25 microns per meter)
Linear speeds up to 5 m/s
Stroke length up to 10 m
Cut to length to your application's required stroke length
Limit switches for end-of-stroke protection
Can be used horizontally or inverted (top-loading application)

Compatible with small- to medium-sized industrial robots with overall weight less than 250 lb
Mounting plate with pre-drilled holes for your selected robot
Base mounting feet with pre-drilled holes to mount to your table, weldment or floor
Cable management for robot power
Precision gearhead with flange to mount your robot brand servo motor*

* RTU can be provided with a Kollmorgen servo motor. Contact Thomson customer support for details.

Applications:

Large part testing and inspection
Machine tending
Material handling (bin picking, palletizing and packaging)
Large-scale welding, soldering, sanding and dispensing

Compatible Robot Brands:

ABB Robotics
Denso Robotics
Doosan Robotics
Epson
FANUC Robotics
Hanwha Robotics
JAKA Robotics
KUKA

Kassow Robots
Kawasaki Robotics
Nachi America
Omron
Techman Robot
Universal Robotics
Yaskawa Motoman Robotics

What is a 7th axis for robots?

What is the difference between 6-axis and 7 axis robots?

See the 7th Axis in action and
discuss your application!
