RAB-20B24-M15

RAB-20B24-M15
RAB-20B24-M15

Brake, 摩擦, RAB-20, 65 毫米 Outside Diameter, 15.000 / 15.015 毫米 Bore, 24 Vdc, 4.5 Nm 靜態(tài)力矩

  • Red lead wire "+", Black lead wire "-"
  • Permanent magnet poweroff brake series that provides zero backlash stopping and/or holding of a load in the absence of power.
  • While the field (electromagnet) is fixed and prevented from rotating, the output hub assembly is secured to the shaft.
  • In the absence of power, the fixed and rotating components are engaged, thus stopping and/or holding the load.
  • When the coil is energized, rotating components are disengaged, thus allowing the shaft to freely rotate.
  • RoHS, REACH and UL Class F compliant.
  • Static or dynamic engagement.

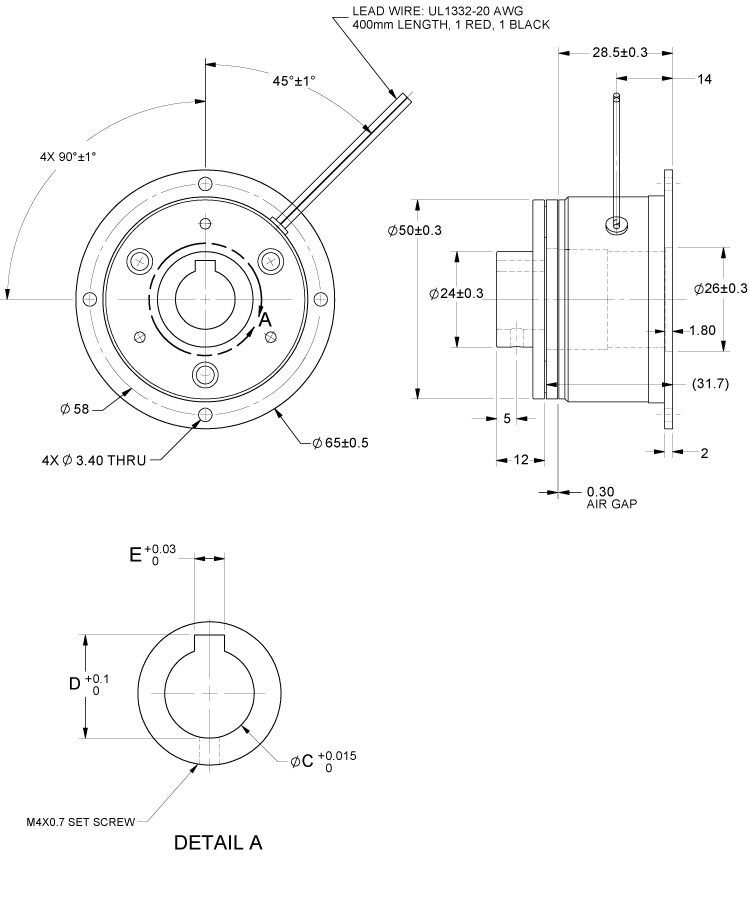

Dimensions

dimensions
尺寸價值
[C] Hub ID Ø, Min/Max15.000 / 15.015 毫米
[D] 最大值17.3 mm
[E] 最大值5.0 mm

Specifications

Specifications價值
(CB) [A] ODHolding
(CB) [A] ODBrake
(CB) [A] OD20
Power, Max12 W
Voltage24 Vdc
Weight0.38 kg
標稱電阻48 Ω
材質鋼
拋光拋光

Performance

Performance價值
靜態(tài)力矩4.5 Nm
