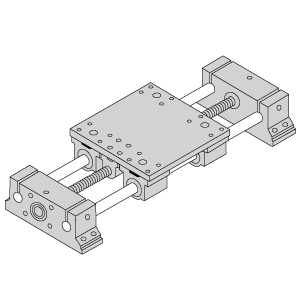

直線運動單元, 2AB, 0.750 英寸, 滾珠絲桿 Drive, 滾珠 Guide, 0.0020 英寸 Repeatability, 無預加載, 單個標準滑塊, 20 毫米 Travel Per Shaft Rev, Shaft On Both Sides


  • 預對準LinearRace導軌
  • Super Smart滾珠襯套軸承
  • 集成式滾珠絲杠組件

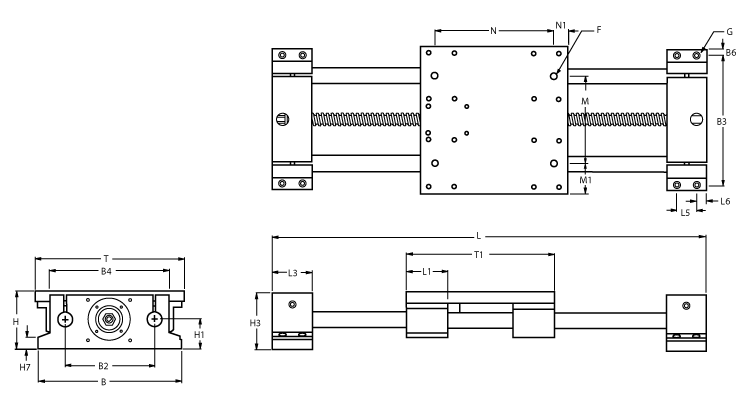

Dimensions

dimensions
尺寸價值
[B]7.2 英寸
[B2]4.5 英寸
[B3]6.7 英寸
[B4]6 英寸
[B6]0.25 英寸
[d] 軸,標稱直徑0.75 英寸
[F]5/16-18
[G]#10
[G]0.22 英寸
[H]2.937 英寸
[H1]1.5 英寸
[H3]2.7 英寸
[H6]0.5 英寸
[H7]0.6 英寸
[H9]1.75 英寸
[L1]2.06 英寸
[L3]2 英寸
[L5]1 英寸
[L6]0.2 英寸
[M]4.5 英寸
[M1]1.5 英寸
[N]6 英寸
[N1]0.8 英寸
[R]1.35 英寸
[T]7.5 英寸
[T1]7.5 英寸
Travel Per Shaft Rev20 毫米

Specifications

Specifications價值
Carriage Type單個標準滑塊
Drive滾珠絲桿
Guide滾珠
Pillow Block or Carriage4 Pillow Blocks
Screw Nut Type無預加載
Shaft ConfigurationShaft On Both Sides
Shaft OrientationInline
Shaft StyleRound Shaft
SupportEnd Supported
保護選項Standard Protection

Performance

Performance價值
Repeatability0.0020 英寸
