1VA12HA0L

1VA12HA0L
1VA12HA0L

直線導軌, 1VA, Round Shaft, Continuously supported, Standard Profile, SRA, 1 Twin Pillow block, 0.750 英寸, One Guide Shaft


  • 連續、末端支撐或無支撐導向軸組件(英制)組成:
  • 一個雙軸承座,開口型,F(xiàn)luoroNyliner 軸承座
  • 1個SRA連續軸支撐
  • 一個不銹鋼60 Case®導向軸

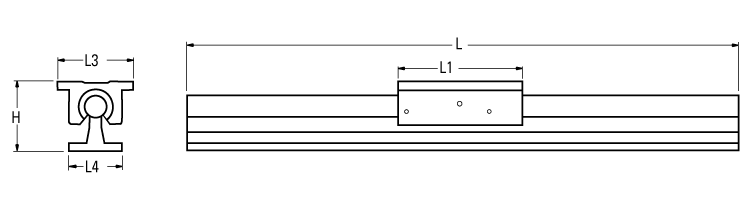

Dimensions

dimensions
尺寸價值
[d] 軸,標稱直徑0.75 英寸
[H]2.437 英寸
[L1]4.5 英寸
[L3]2.75 英寸
[L4]1.75 英寸

Specifications

Specifications價值
Pillow Block or Carriage1 Twin Pillow block
Shaft StyleRound Shaft
SupportContinuously supported, Standard Profile
Temperature Max550 °F
材質鋼;鋁合金;塑料

Performance

Performance價值
負載能力,靜態3800 磅力
